Maharaja International Partners manufacturers and exporters of Ring Hangers and J - Type Adjustable Pipe Hanger in India, Punjab Ludhiana.
Ring Hangers
Ring Hangers
J - Type Adjustable Pipe Hanger
J - Type Adjustable Pipe Hanger
Ring Hanger
| Item Code | Size< | A(mm) | B(mm) | CXE(mm) | Nut | ĮžD(mm) |
|---|---|---|---|---|---|---|
| MI301A | 1/2 | 41.50 | 54.50 | 16X1.2 | 3/8 | 21.7 |
| MI301B | 3/4 | 45.34 | 60.50 | 16X1.2 | 3/8 | 27.2 |
| MI301C | 1 | 47.73 | 64.16 | 16X1.2 | 3/8 | 34.0 |
| MI301D | 1-1/4 | 54.31 | 70.74 | 16X1.2 | 3/8 | 42.7 |
| MI301E | 1-1/2 | 57.58 | 74.01 | 16X1.2 | 3/8 | 48.6 |
| MI301F | 2 | 66.16 | 82.59 | 16X1.2 | 3/8 | 60.5 |
| MI301G | 2-1/2 | 88.69 | 104.5 | 22X1.5 | 3/8 | 76.3 |
| MI301H | 3 | 96.12 | 112.5 | 22X1.5 | 3/8 | 89.1 |
| MI301I | 3-1/2 | 100.5 | 120.5 | 22X1.5 | 3/8 | 102 |
| MI301J | 4 | 110.7 | 126.9 | 22X1.5 | 3/8 | 114 |
| MI301K | 5 | 135.7 | 145.5 | 19X2 | 1/2 | 139.8 |
| MI301L | 6 | 154.1 | 173.2 | 19X2 | 1/2 | 165.2 |
| MI301M | 8 | 192.4 | 211.5 | 19X2.5 | 1/2 | 216.3 |

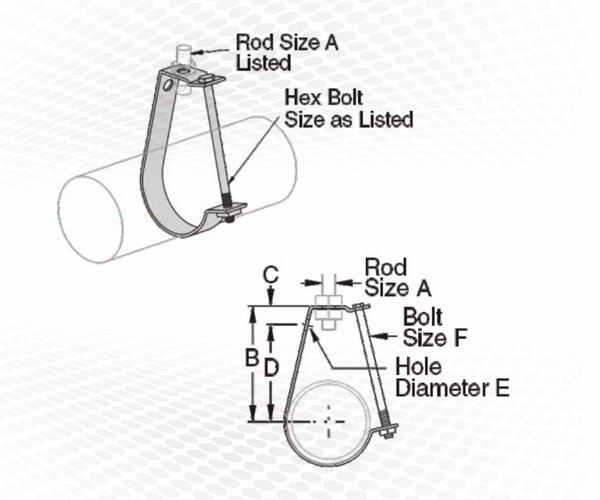

J - Type Adjustable Pipe Hanger
| Item Code | Pipe Size | Rod | Size of Steel (mm) | "D" (mm) | Bolt | O.D Size (mm) |
|---|---|---|---|---|---|---|
| MI302A | 1/2 | M10 | 3x20 | 11 | M6x60 | 21.3 |
| MI302B | 3/4 | M10 | 3x20 | 11 | M6x65 | 26.7 |
| MI302C | 1 | M10 | 3x20 | 11 | M6x70 | 33.4 |
| MI302D | 1-1/4 | M10 | 3x20 | 11 | M6x75 | 42.2 |
| MI302E | 1-1/2 | M10 | 3x20 | 11 | M6x80 | 48.3 |
| MI302F | 2 | M10 | 3x20 | 11 | M6x90 | 60.3 |
| MI302G | 2-1/2 | M12 | 3x30 | 14 | M6x110 | 73.0 |
| MI302H | 3 | M12 | 3x30 | 14 | M6x130 | 88.9 |
| MI302I | 3-1/2 | M12 | 3x30 | 14 | M6x140 | 101.6 |
| MI302J | 4 | M12 | 4x30 | 14 | M6x160 | 114.3 |
| MI302K | 5 | M12 | 4x30 | 14 | M6x190 | 141.3 |
| MI302L | 6 | M16 | 6x30 | 14 | M6x220 | 168.3 |
| MI302M | 8 | M16 | 6x40 | 14 | M6x260 | 219.1 |
