Maharaja International Partners manufacturers and exporters of Clevis Hangers and Pipe Clamps in India, Punjab Ludhiana.

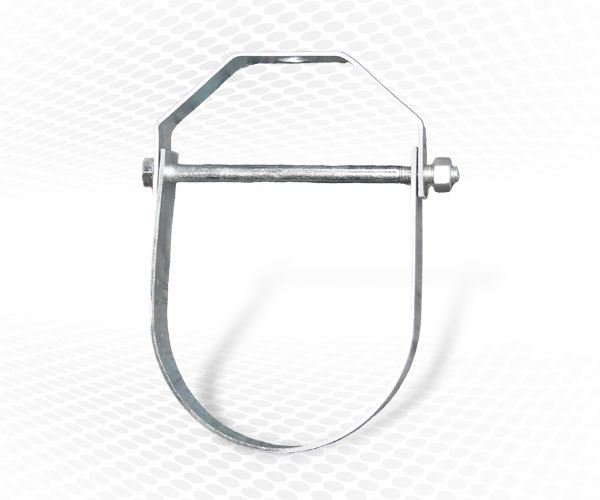

Clevis Hangers
Clevis Hangers

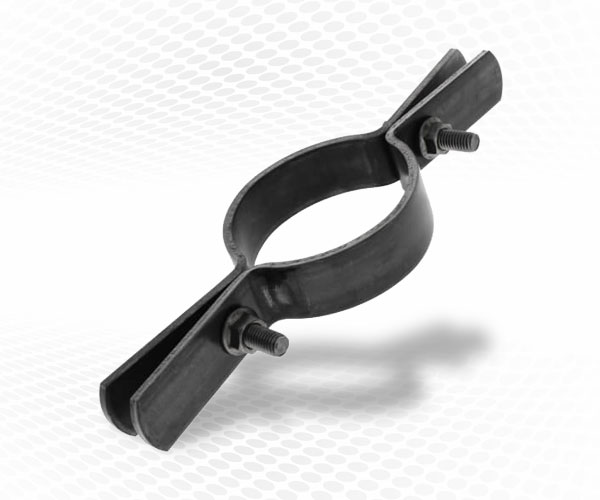

Riser Clamps
Riser Clamps

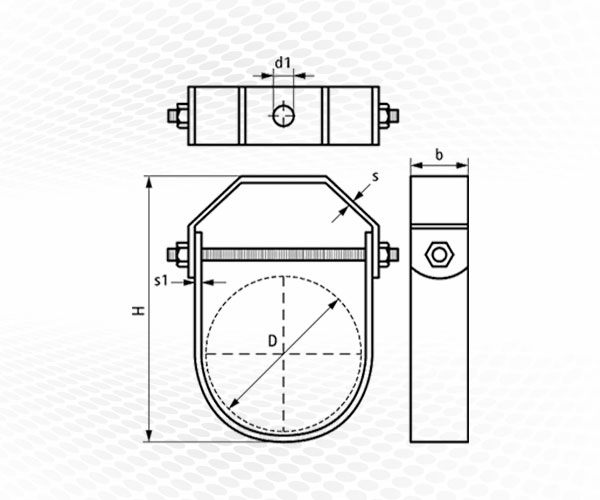

Clevis Hangers
| Item Code | Size | M | Ǿ | d | r2 | C | S | e | Boit size | Txb |
|---|---|---|---|---|---|---|---|---|---|---|
| MI351A | 3/4 | 82.5 | 11 | 46 | 40 | 20 | 24 | Ǿ8 | 1/4x50 | 2.5x22.5 |
| MI351B | 1 | 99 | 11 | 56.5 | 40 | 20 | 24 | Ǿ8 | 1/4x57 | 2.5x22.5 |
| MI351C | 1-1/4 | 106 | 11 | 54 | 40 | 23 | 24 | Ǿ8 | 1/4x70 | 2.5x22.5 |
| MI351D | 1-1/2 | 107 | 11 | 40 | 40 | 23 | 24 | Ǿ8 | 1/4x75 | 2.5x22.5 |
| MI351E | 2 | 126 | 11 | 56 | 40 | 21 | 25 | Ǿ8 | 1/4x90 | 2.5x22.5 |
| MI351F | 2-1/2 | 156 | 14 | 69 | 40 | 15 | 32 | Ǿ11 | 3/8x110 | 3x26 |
| MI351G | 3 | 169 | 14 | 53 | 40 | 15 | 32 | Ǿ11 | 3/8x115 | 3x26 |
| MI351H | 3-1/2 | 165 | 14 | 51 | 40 | 20 | 34 | Ǿ11 | 3/8x140 | 4x30 |
| MI351I | 4 | 200 | 17 | 72.5 | 40 | 20 | 45 | Ǿ11 | 3/8x150 | 4x30 |
| MI351J | 5 | 231 | 17 | 76 | 40 | 24 | 50 | Ǿ14 | 1/2x200 | 4.5x32 |
| MI351K | 6 | 260 | 20 | 77 | 40 | 21 | 50 | Ǿ14 | 1/2x225 | 4.5x36.5 |
| MI351L | 8 | 329 | 20 | 90 | 40 | 28 | 57 | Ǿ17 | 5/8x280 | 4.5x42.5 |
| MI351M | 10 | 381 | 23.7 | 84 | 80 | 30 | 54 | Ǿ20 | 3/4x360 | 6x44.5 |
| MI351N | 12 | 157 | 23.7 | 104.5 | 80 | 48 | 57 | Ǿ20 | 3/4x410 | 6x50 |
| MI351O | 14 | 514 | 27 | 123 | 80 | 38 | 94 | Ǿ23.7 | 7/8x465 | 6x50 |
| MI351P | 16 | 560 | 27 | 119 | 80 | 50 | 90 | Ǿ27 | 1x520 | 6x64 |
| MI351Q | 18 | 638 | 32 | 135 | 80 | 50 | 105 | Ǿ32 | 1-1/8x570 | 6.5x64 |
| MI351R | 20 | 695 | 33.2 | 135 | 80 | 58 | 180 | Ǿ33.2 | 1-1/4x645 | 8x76 |
| MI351S | 24 | 803 | 33.2 | 155 | 80 | 58 | 215 | Ǿ33.2 | 1-1/4x755 | 8x76 |

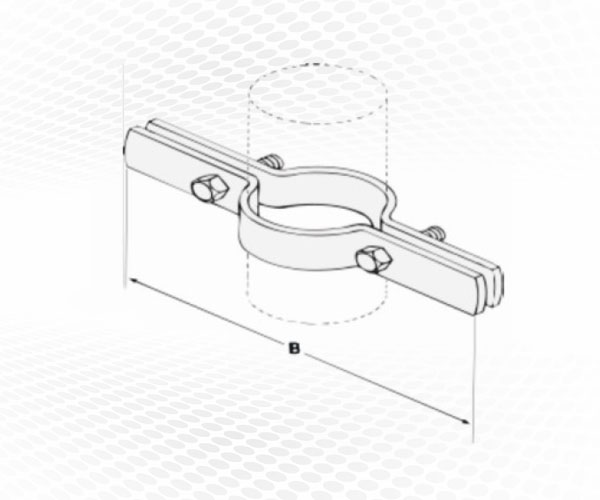

Riser Clamps
| Item Code | Pipe Size(inch) | B(inch) | Bolt Size (inch) | Material Size (inch) | Max. Rec. Load/lbs | Wt.Each (inch.) |
|---|---|---|---|---|---|---|
| MI352A | 1/2 | 9 | 3/8x1-1/4 | 7ga x1-1/4 | 220 | 1.05 |
| MI352B | 3/4 | 9-3/8 | 3/8x1-1/4 | 7ga x1-1/4 | 220 | 1.05 |
| MI352C | 1 | 9-5/8 | 3/8x1-1/4 | 7ga x1-1/4 | 220 | 1.05 |
| MI352D | 1-1/4 | 10 | 3/8x1-1/4 | 7ga x1-1/4 | 250 | 1.10 |
| MI352E | 1-1/2 | 10-3/8 | 3/8x1-1/4 | 7ga x1-1/4 | 250 | 1.17 |
| MI352F | 2 | 10-3/4 | 3/8x1-1/4 | 7ga x1-1/4 | 300 | 1.20 |
| MI352G | 2-1/2 | 11-1/4 | 3/8x1-1/4 | 3ga x1-1/4 | 400 | 1.89 |
| MI352H | 3 | 11-3/4 | 3/8x1-1/4 | 3ga x1-1/4 | 500 | 1.99 |
| MI352I | 3-1/2 | 13 | 3/8x1-1/4 | 3ga x1-1/4 | 600 | 2.17 |
| MI352J | 4 | 13-1/2 | 1/2x1-3/4 | 3ga x1-1/4 | 750 | 2.21 |
| MI352K | 5 | 14-1/2 | 1/2x1-3/4 | 3/8x1-1/2 | 1500 | 3.24 |
| MI352L | 6 | 16 | 1/2x1-3/4 | 3/8x1-1/2 | 1600 | 3.89 |
| MI352M | 8 | 18 | 5/8x2 | 3/8x1-1/2 | 2500 | 7.60 |
| MI352N | 10 | 21-1/2 | 5/8x2 | 3/8x2 | 2500 | 11.10 |
| MI352O | 12 | 23 | 5/8x1-1/2 | 1/2x2 | 2700 | 16.50 |
| MI352P | 14 | 25 | 5/8x3 | 1/2x2 | 2700 | 17.70 |
| MI352Q | 16 | 26-1/4 | 3/4x3-1/2 | 5/8x2-1/2 | 2900 | 30.40 |
| MI352M | 18 | 28-3/8 | 3/4x3-1/2 | 5/8x2-1/2 | 2900 | 33.30 |
| MI352M | 20 | 30 | 3/4x3-1/2 | 5/8x2-1/2 | 2900 | 36.30 |
| MI352M | 24 | 34-3/4 | 7/8x3-1/2 | 5/8x3 | 2900 | 48.68 |
| MI352M | 30 | 40-3/4 | 7/8x3-1/2 | 5/8x3 | 2900 | 60.16 |
